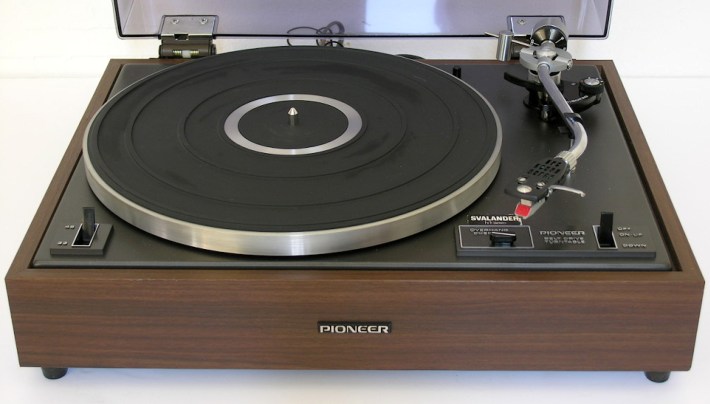

Pioneer PL-12D

Back in the early nineteen seventies, the main purveyors of turntables in Britain were Garrard and BSR, with the likes of Lenco, Dual, Philips, Collaro and Balfour also providing some popular designs. Many were auto-changers, and often appeared in then-popular radiograms of the day; for audiophile purposes they were far from ideal. At this time, the Japanese were beginning to encroach upon the market, but it wasn’t until the Pioneer PL-12D arrived in 1973 that the cat well and truly got amongst the pigeons…

Whereas the likes of the Garrard SP25 mk4 were fairly crude, noisy rim-drive designs, the PL-12D was far more sophisticated in relative terms, with a well-implemented belt drive system that turned in a decent 47dB rumble figure. It ran far quieter and more smoothly than the budget Garrards of the day, and had a slightly larger twelve inch spun zinc-alloy platter compared to the SP25’s ten inch pressed affair, for better disc support.

It also sported a better, longer 221mm S-shaped tonearm with SME-style detachable headshell and well-adjusted radial bearings. Again, this was much silkier in operation than the Garrard, was beautifully finished and fitted with an adjustable counterweight and an anti-skating device. It was completely manual too, being focused at the budget audiophile market who wanted lower friction bearings instead of automation; it was inevitably one or the other. The slightly pricier semi-automatic PL-12S model proved unpopular in the UK, which demonstrates how strongly the manual version appealed to cash-strapped enthusiasts.

Whereas a Garrard SP25 would set you back around £40, the Pioneer cost £55. It was a world away from the British design and looked, handled and sounded so much better too. Whereas the former struggled to track crude cartridges like the Shure M75-6 (£8 in 1975) the latter’s arm was good enough to handle the more expensive Shure M75ED2 (£12 in 1975), which had a far-superior elliptical stylus and tracked at between 0.75 to 1.5g compared to the 3g that the Garrard’s M75-6 spherical tip ploughed the groove at. Its lightweight arm matched perfectly, the deck and cartridge together became a classic combination; the vast majority of these Pioneers were sold with it.

The motor is a four-pole AC synchronous type, meaning that the speed is locked to the mains frequency and cannot be adjusted. Because of this, the deck is set to run ever so slightly too fast lest the mains frequency drop and make the deck too slow; it turns in a respectable wow and flutter figure of 0.1% WRMS (the Linn LP12 of that time was 0.05%). The full sized (430x161x349mm, 7.5kg) deck itself includes a dustcover and plinth – amazingly, these were optional extras for the SP25 in its early years – and sits on springs that do a good job of isolating it from the outside world. Indeed, in this respect it’s considerably better than its PL-112D successor, which was not sprung at all. These springs should be damped by foam rubber; if it has disintegrated in your particular example then you can always cut up a sponge and fix them!

The result is a pacey sound that is bright and lively, yet decently refined too. Indeed the M75ED2 is a pretty forward cartridge – very dramatic sounding, and much fun – and the Pioneer is smooth enough to tame its excitable nature. By today’s standards it’s a little opaque and two dimensional, but still highly listenable. Today, Pioneer PL-12Ds are still fairly easy to track down but are beginning to become collectable, so prices are edging up. You can still pick one up for under £100 and it’s very good alternative to a modern entry-level Pro-Ject or Rega, but with great classic cachet.

The PL-12D was top of the UK’s turntable pops for about three years. In 1977 the Trio KD-1033 arrived, offering the same formula but with a fractionally better sound and more modern appearance, and then followed Sansui’s SR-222/II a year or two later; this was an altogether more refined design that made the Trio look dated. It was 1979’s Dual CS 506 that really broke up the Japanese party however; for just under £90 in 1980 it was of far better quality and – in its cheaper CS505 guise a year or two later – went on to dominate the eighties budget vinyl scene until Compact Disc finally prevailed.

Pioneer PL-12D


  1. Brian

    I had the Pioneer P112D. Still got it!

    I have had to replace the rubber belt a few times though. Trouble is when it isn’t used, which happened more and more often with the advent of CD, if you didn’t remove the belt and store it in a sealed plastic bag, it would perish.

    This is because when rubber, nitrile rubber in particular, is under strain, ozone causes the rubber to deteriorate even quicker.

    Still a bloody good turntable though. No noticeable rumble at all and when set up with a Shure M75ED cartridge (still using that too!) the output is superb.

  2. John Waller

    I still have A Pioneer PL12d but it is now in the loft along with KEF Choral speakers and Sansui Tuner Amp, I needed a device to convert my Vinyls to CD so I invested in a TEAC LP R 550 USB which does the job extremely well have CD units throughout most on my house rooms.I do miss my Stereo set up.

  3. Roy Maddison

    Brilliant revue such memories just seen one for 59 pounds getting it tomorrow

  4. Claus Hensing

    Good description of one of the most faithful and reliable turntables ever.

    Even after 45 years, the brass bearing is still so precise and tight, that it takes the plate is several minutes to sink to the bottom when newly lubricated.

    The drive belt must of course be expected to change (available cheaply). Also the foam inside the 4 springs.
    The motor suspension – 3 rubber “sleeves” – hardens over time and then transports the motor vibrations to the plinth and cartridge.

    This can be fixed by removing the sleeves and putting them in the Rubber Conditioner from LaCross (intended for rubber boots) for 10 minutes. Then the sleeves achieve their original flexibility and ability to absorb vibrations – and the PL12 is ready for another 20 years.

    I buy what I can find of PL12’s (up to 60-80 GBP) – they are sold on after service to young people who want a smooth start into the world of vinyl.

    Well done, Pioneer.

  5. Rich C.

    One of the ‘workhorses’ of the mid 70s era.

    Though generally sold with its own specific wooden plinth (with smoked glass dust cover), I wonder if any of these gems were offered/supplied as a ‘deck-only’ option, a la BSR, Garrard, Lenco, etc, as it is clearly a ‘detachable’ deck?

    Strange how the (Goldring) Lenco (G)L 75 and its ‘auto stop’ successor the (G)L 78 have never received any entries in this site, as they were quite popular decks back in the day; the 75 in particular.
